HelloSAT-GNSSRT

HelloSAT-GNSSRT

GNSS Simulator:

- Generates the signals identical to those of GNSS (i.e., GPS and GLONASS),
- Extracts RINEX information and 1PPS through the analysis of GNSS received signals, and
- Generates and transmits the navigation messages of visible satellites as per the user’s instruction.

HelloSAT Is Applicable To:

- Navigation operation monitoring
- Driving tests of autonomous vehicles and drones
- Defense system against the intrusion or the attacks of GNSS-guided weapons or drones

Generation Signal : 1575.42MHz(GPS L1), 1,602MHz(GLONASS L1)

Output Power : -100~-80dBm (Variable)

Generation Signal : 2.5MB

Quzntization : 2bit

Data Format : I&Q data

Number of SAT. : 12ea (Satellite)

Size : 200*150*30(mm)

Weight : 500g

Feature

- GNSS navigation message generation software
- Time synchronization using GPSDO (20ns)
- A wide array of outputs through precision power control technology
- Any open global map fits in HelloSAT
- Conveniently connected to various peripheral devices like antenna, power amplifier and networks

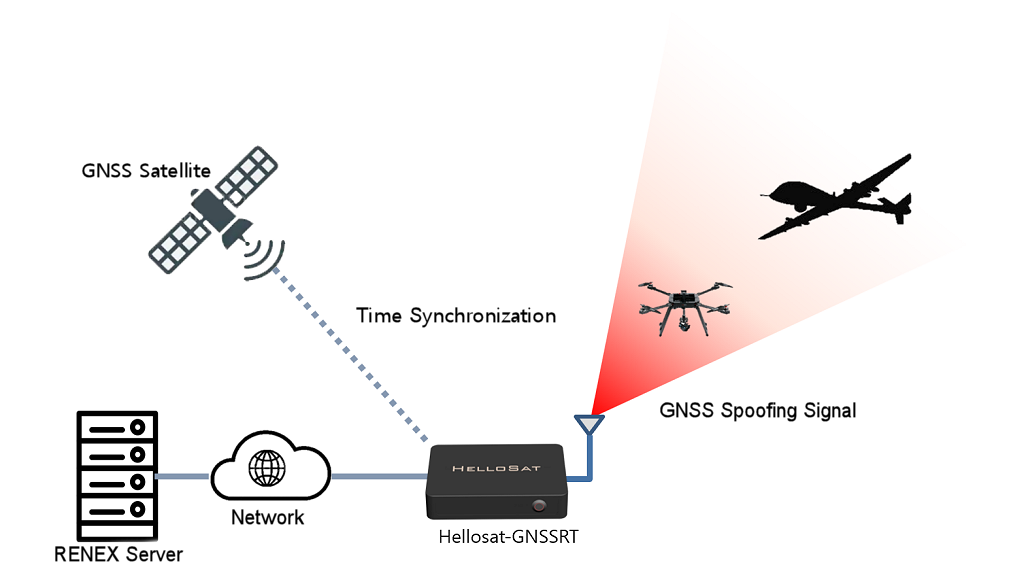

- HelloSAT’s Drone Defense System

1

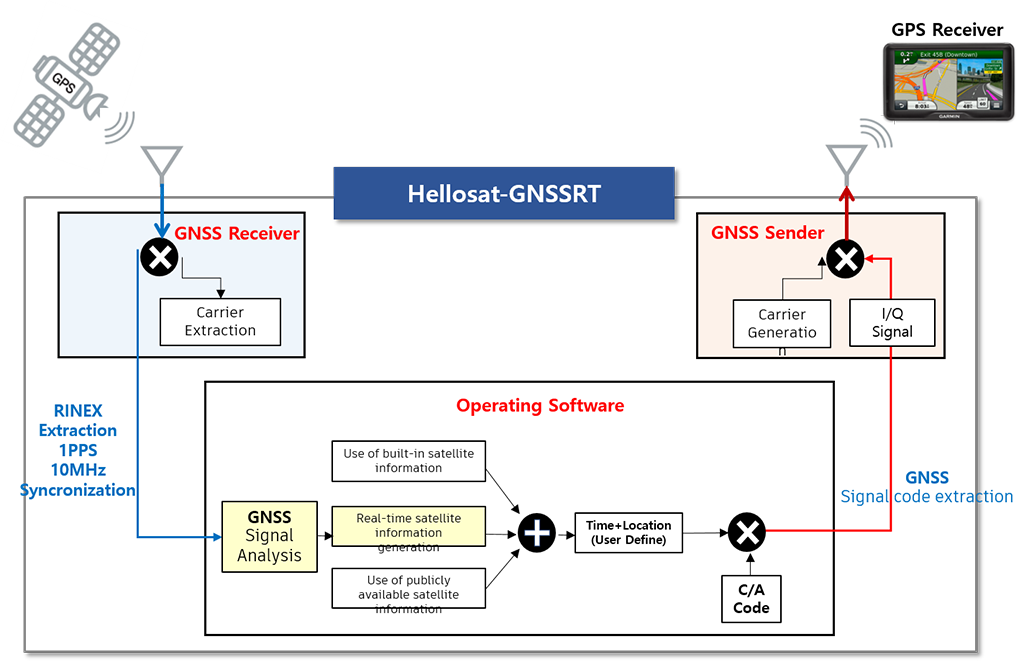

- HelloSAT System Configuation

1

1

- A Generation of GNSS Signal for Spoofing Position

1

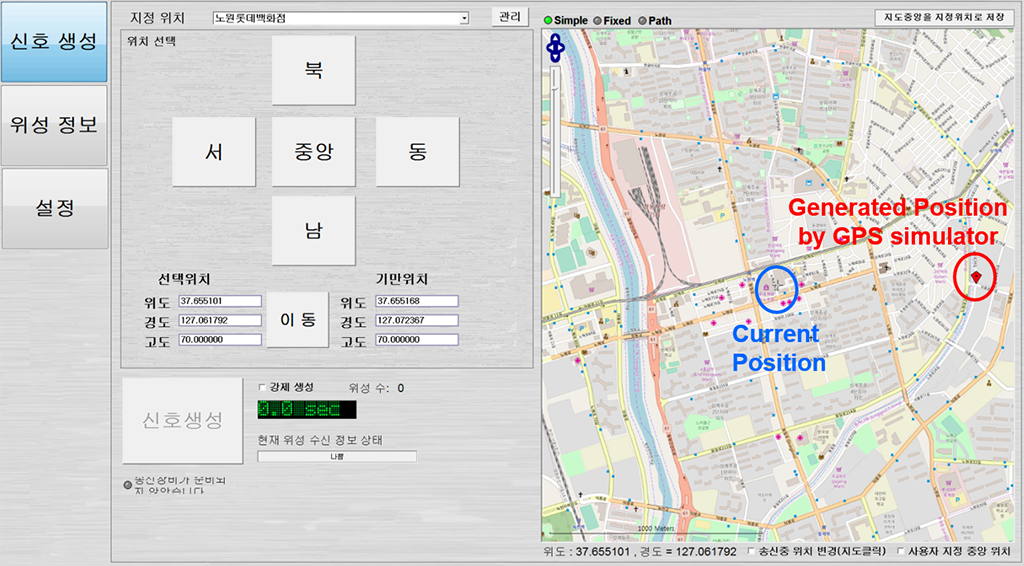

- A Generation of GNSS Signal for Spoofing Path

1
