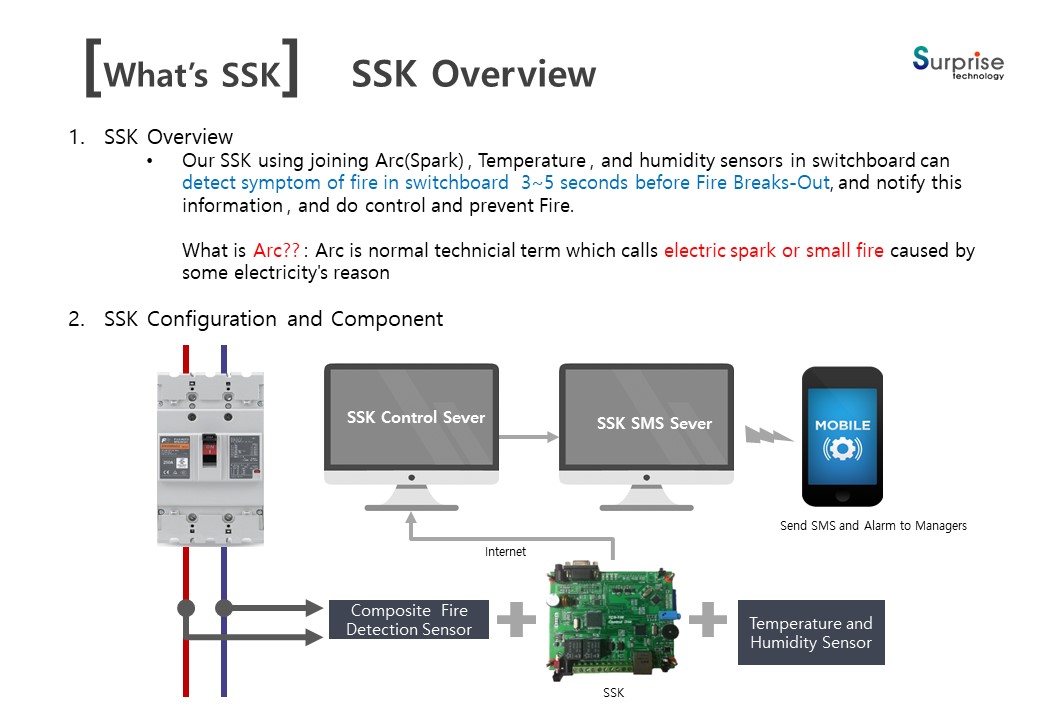

Smart Switchboard Kit

Why do I need a Smart Switchboard Kit?

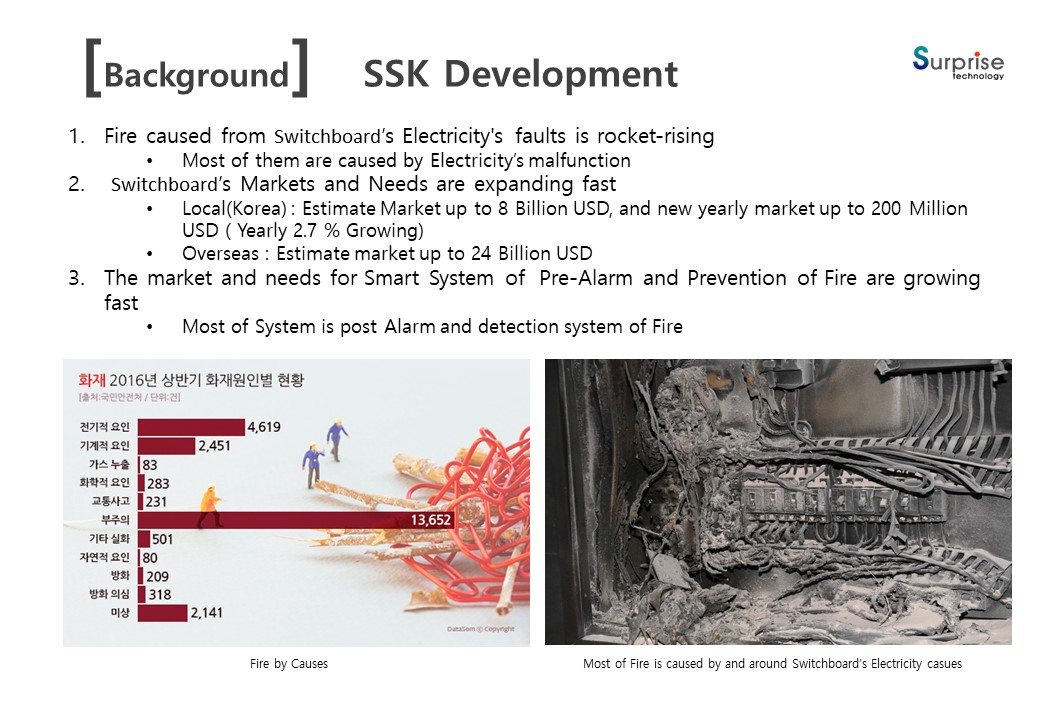

Rapid increase in fires caused by electricity in switchboards
Excluding the cause of fire caused by carelessness, electrical factors account for the largest proportion

Expansion of domestic and foreign switchboard market
Korea: New switchboard market estimated at about KRW 200 billion per year (up 2.7% per year)
Overseas: estimated at 23,4,500 won, 3.5 times the domestic market

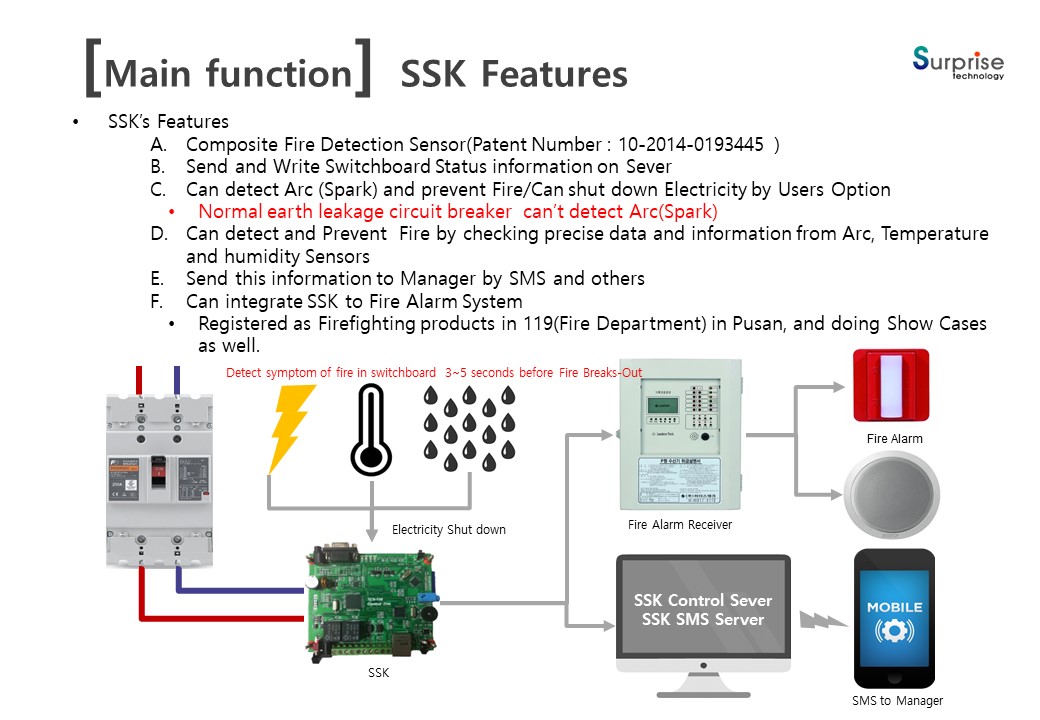

The need for a system that detects signs of fire and prevents fire increases
All existing equipment detects and notifies the situation after a fire

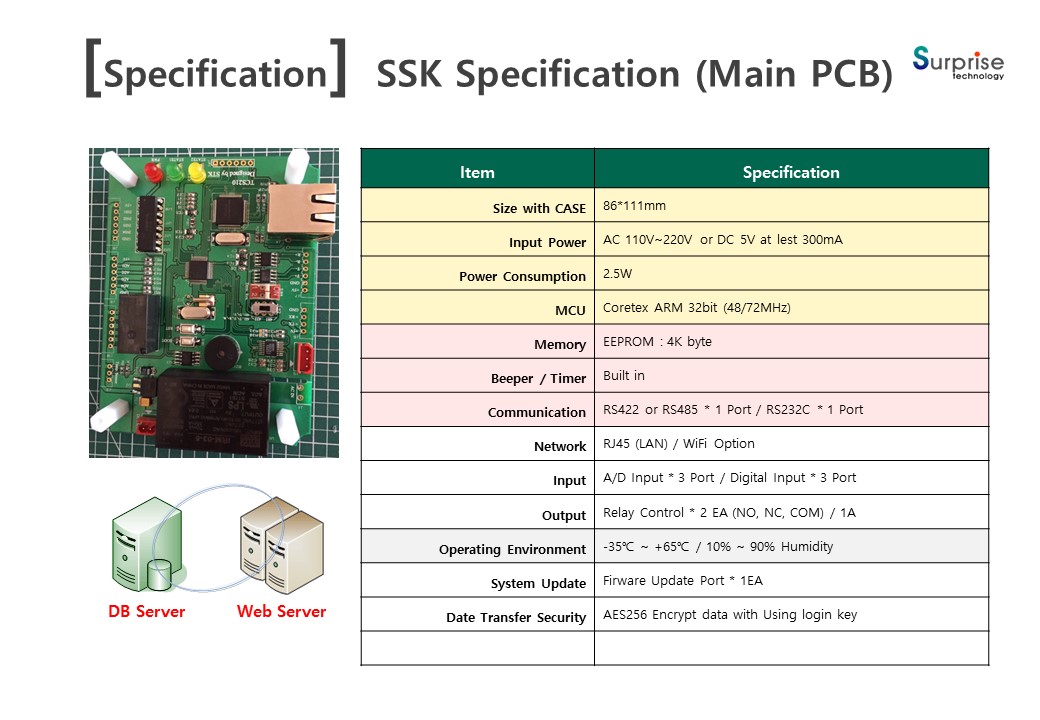

Size with CASE: 86*111mm

Input Power: AC 110V~220V or DC 5V at lest 300mA (2.5W)

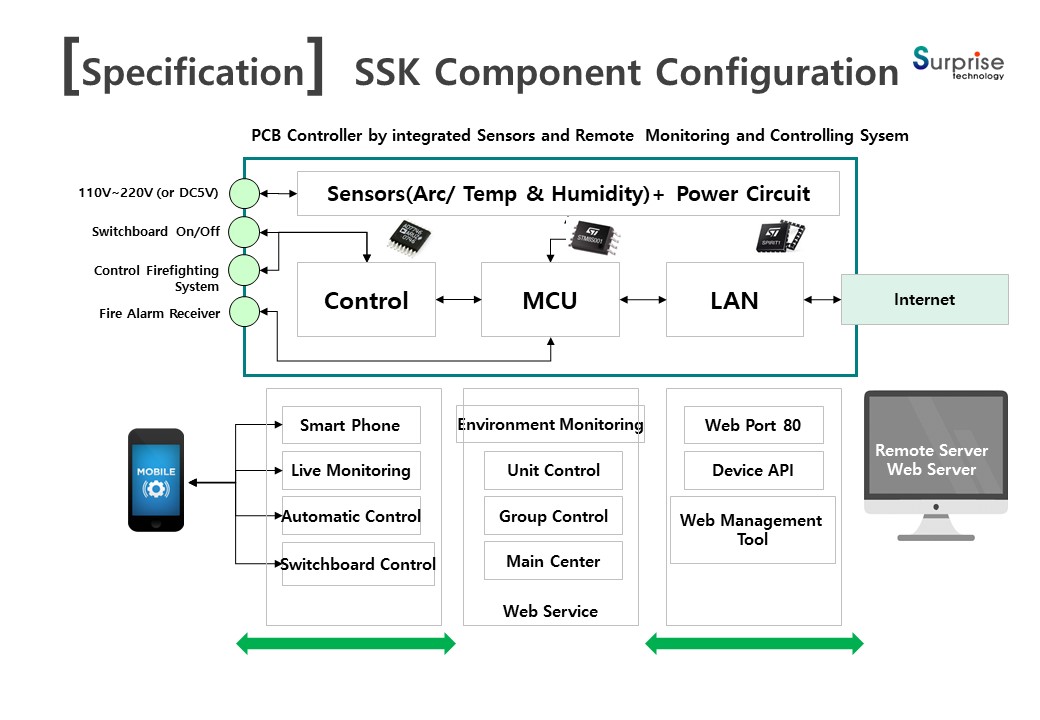

MCU: Coretex ARM 32bit (48/72MHz)

Memor: EEPROM : 4K byte

Beeper: Built in

Communication: RS422 or RS485 * 1 Port / RS232C * 1 Port

Network: RJ45 (LAN) / WiFi Option

Input: A/D Input * 3 Port / Digital Input * 3 Port

Output: Relay Control * 2 EA (NO, NC, COM) / 1A

Operation Environment: -35℃ ~ +65℃ / 10% ~ 90% Humidity

System Update: Firmware Update Port * 1EA / Internet Auto-Update

Date Transfer Security: AES256 Encrypt data with Using login key
